Anchen style supermarket shelf
Supermarket shelves are the most common style of racks worldwide. Anchen style is the most popular one. Many clients trend to purchase this kind of shelf cause of its wide application and easy installation. It is widely used in supermarkets, pharmacies, retail stores, convenience stores, maternity and baby stores, cosmetics stores, department stores, etc.
Now I will introduce Anchen style supermarket shelf in Zhiding for you.

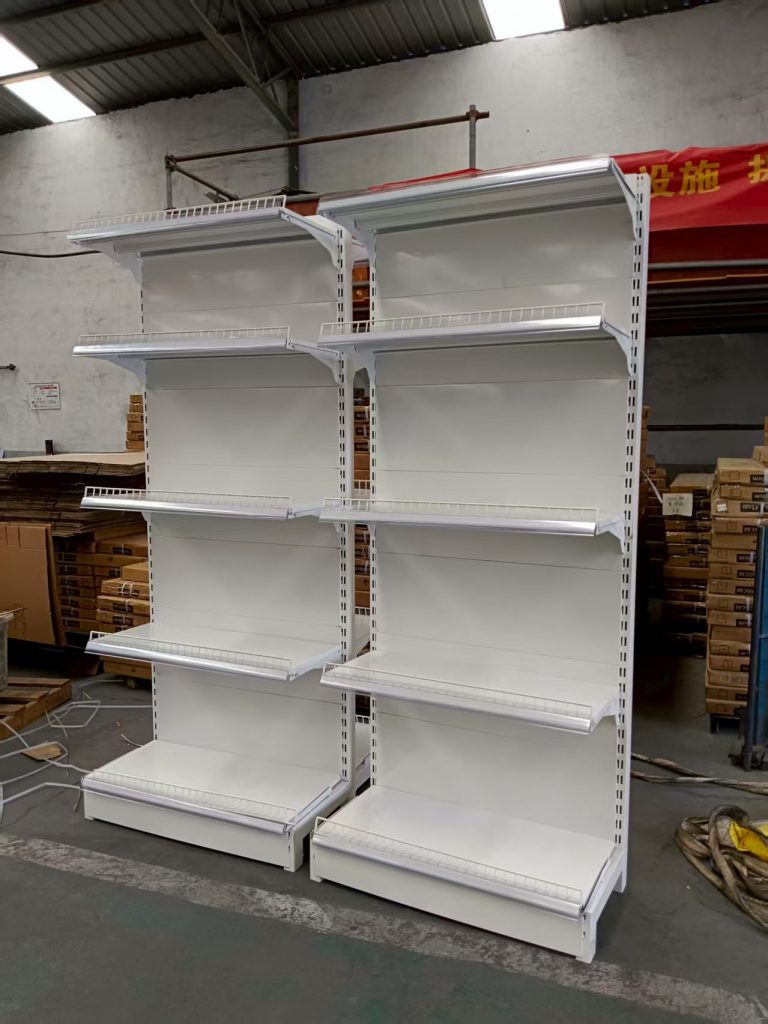

Anchen style supermarket rack has main frame and sub frame. Main frame has two uprights, while sub frame has one single frame. Now I tell you how to design your shelves. For example, if you need 8 racking linking together, you can just buy one main frame, and 7 sub frames. Every shelf usually has 5 layers, and every layer can load 80kg. It mainly consists of the following parts: upright, back board, layer board, bracket. I will show you the dimension of these parts.
- Upright:
section dimension: 3*7cm, 4*6cm, 3*6cm.
Height： 135cm/165cm/195cm/225cm
Thickness: 1.0/1.2/1.5mm
We have two kinds of uprights： single side and double sides
- Board:
Thickness：0.4/0.5mm
Length：90/120cm
Width of layer board： 28/35
Width of bottom board：33/40
The bottom board is wider 5cm than layer boards.
- Back panel: 0.3/0.35mm

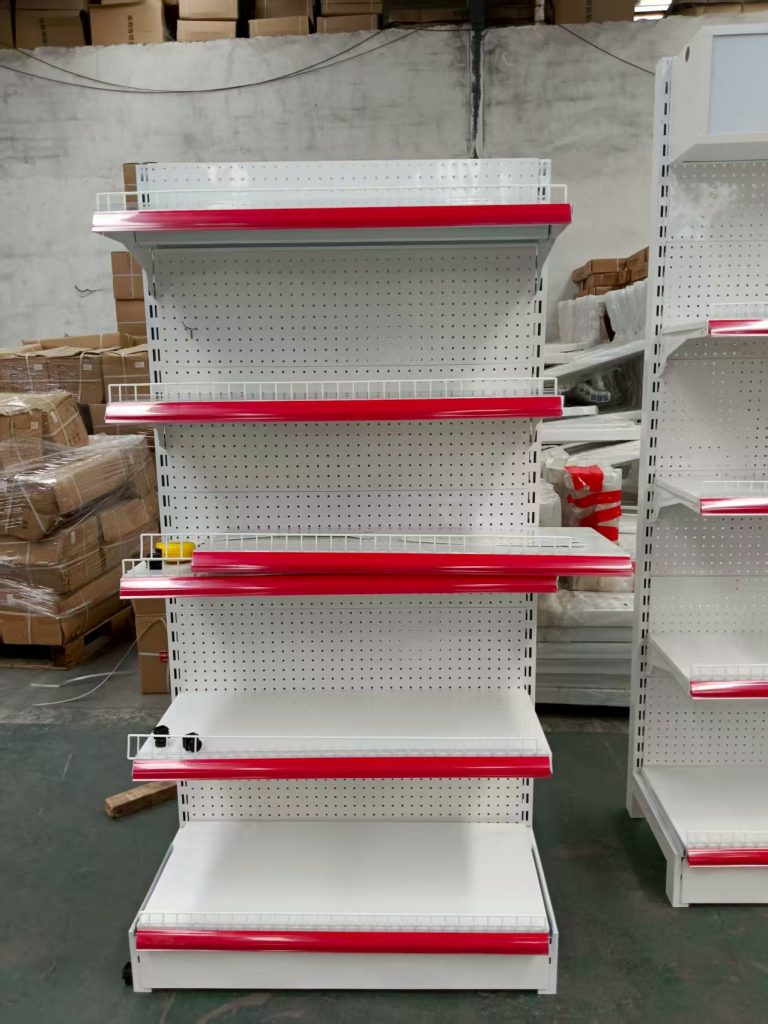

It has plat back board and punched board two kinds.
- Bracket: 1.6/1.8mm
For colors, we have regular color white and gray in stock, other colors can be customized. And we have a variety of color price tag available.
